Type 350 pump is lower helix controlled single cylinder pump; the injector is water-cooled multi-orifice closed type with opening pressure of 21.56MPa and needle lift of 0.75±0.05. They are suitable for various 6350GZC, 8350GZC, 6L350, 6S350, 6350ZC, 8350ZC and G350ZEC diesel engines manufactured by Shanxi Machinery Plant, Yichang Marine Diesel Works, Shanghai Xinzhong Power Plant, etc.. JK350 pairs are suitable for type 6S350PN, 6L350PN diesel engines imported from Czekh.

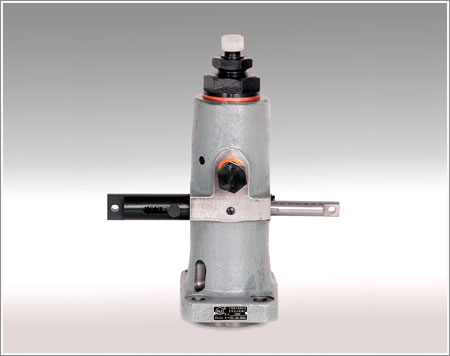

Fuel Injection Pump

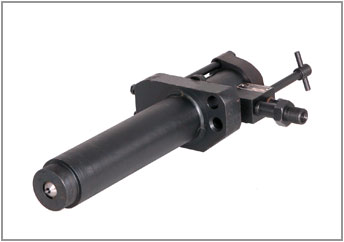

Injector

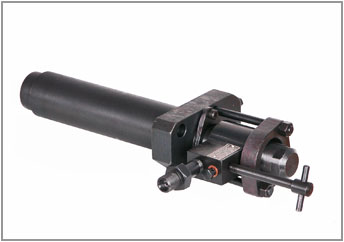

Injector

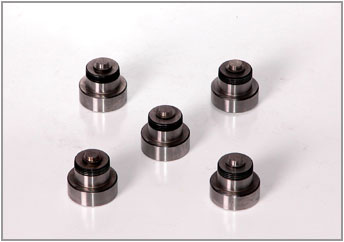

Delivery Valve Assembly

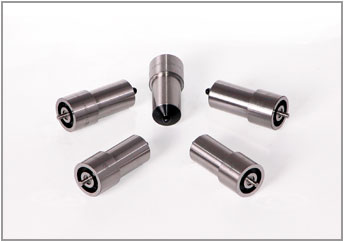

Nozzle Assembly
